Moving head Light

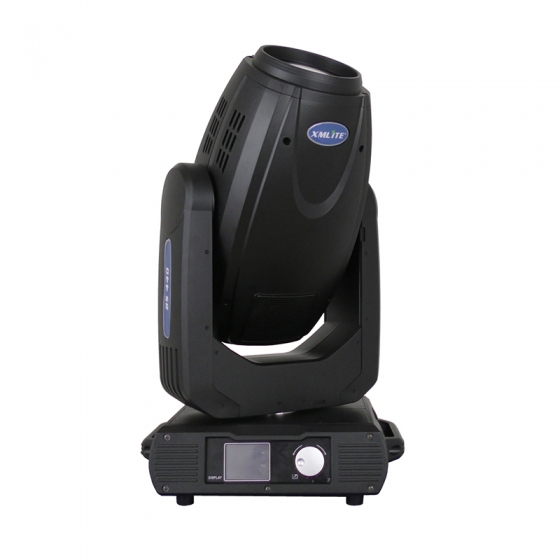

20R Moving Head HybridBack
Model: BS440/BS440C
Voltage: 220V
Bulb model: OSRAM 440W
Effect wheel:
Color wheel: 1
Gobo: 2
Power:
IP lever: 56
Voltage:
Size:
Function:
Carton size:
{$title}

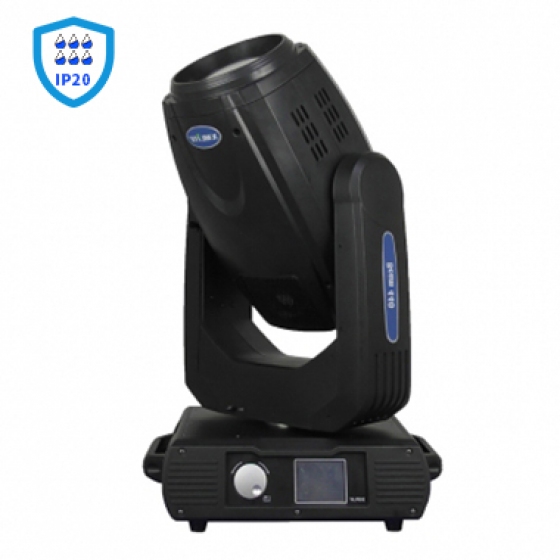

20R moving head hybrid

video link for CMY and CTO function

video link for basically function

Model NO : BS440/BS440C
Channels mode ：16/20/24CH;

Light Source
Lamp: OSRAM SIRIUS HRI 440W WD41MM.

Optical System
Beam angle : 2.5～39°;
Dimmer : 0-100% linear adjustment ;

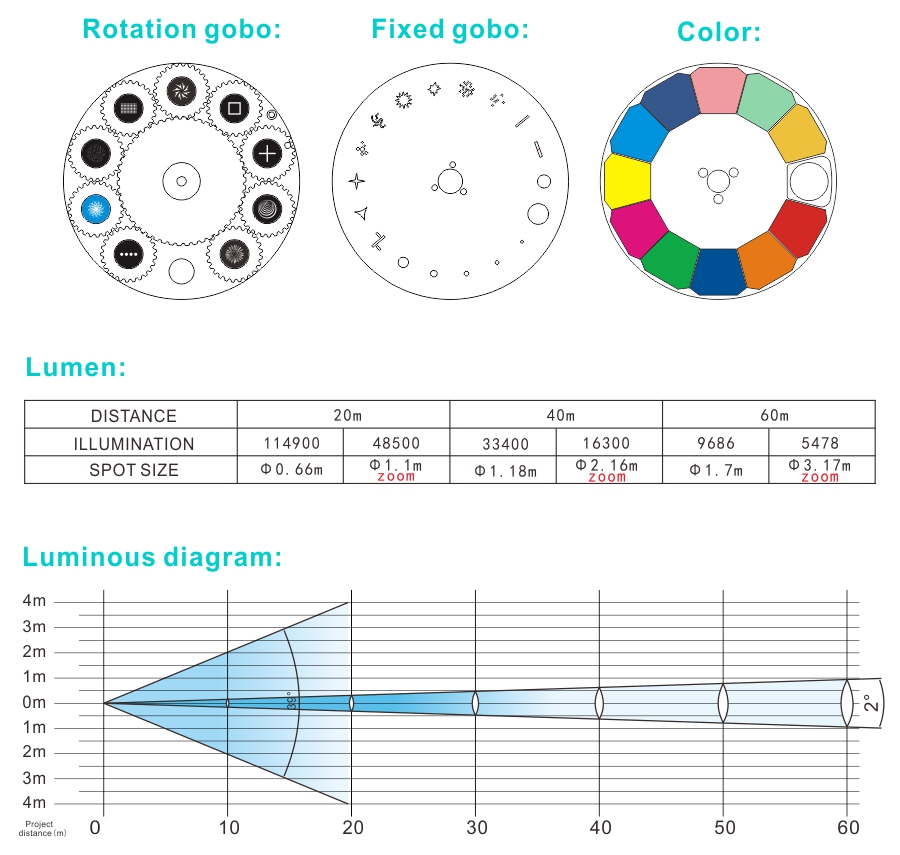

Gobo Wheels
Fixed gobo : 16 gobo + white.
Rotation gobo: 9 gobo+ white,changeable;
Gobo size diameter:14.9mm ,image diameter:10mm;

Color Wheels
11 colors+white(CTO anc CMY optional).

Prism System
Prism: 8 facet prism+ 4 l inear prism +16 facet prism,
Each 2 prism can mixed together for using,Frost function.

Control & Screen
Display: 2.8 inch touch screen display,can reverse 180°.
USB function: Power on display board and for updating software.

Electrical Info
Power: 110-240V,50/60Hz;
Total power: 600W;

PAN & TILT
Pan : 540°, 8Bit/16Bit ;
Tilt: 270°, 8Bit/16Bit ;

Size & Weight
Product size: 440x310x680 mm;
Flycase: 930x520x910 mm;
Carton box: 540x450x650 mm;

N.W: 20 KG ;

1.Power Cables
2.safety cable
3.Omega
4.User manual
5.Hooks
6.Flycase(optional)
7.Raincover(optional)
