Product Specifications
| Model | BS440/BS440C |
|---|---|
| Voltage | 220V |
| Bulb Model | OSRAM 440W |
| Color Wheel | 1 |
| Gobo | 2 |
| IP Level | 56 |
- Product Description
- Accessories
20R moving head hybrid
video link for CMY and CTO function
video link for basically function
Model NO : BS440/BS440C
Channels mode ：16/20/24CH;
Light Source
Lamp: OSRAM SIRIUS HRI 440W WD41MM.
Beam angle : 2.5～39°;
Dimmer : 0-100% linear adjustment ;

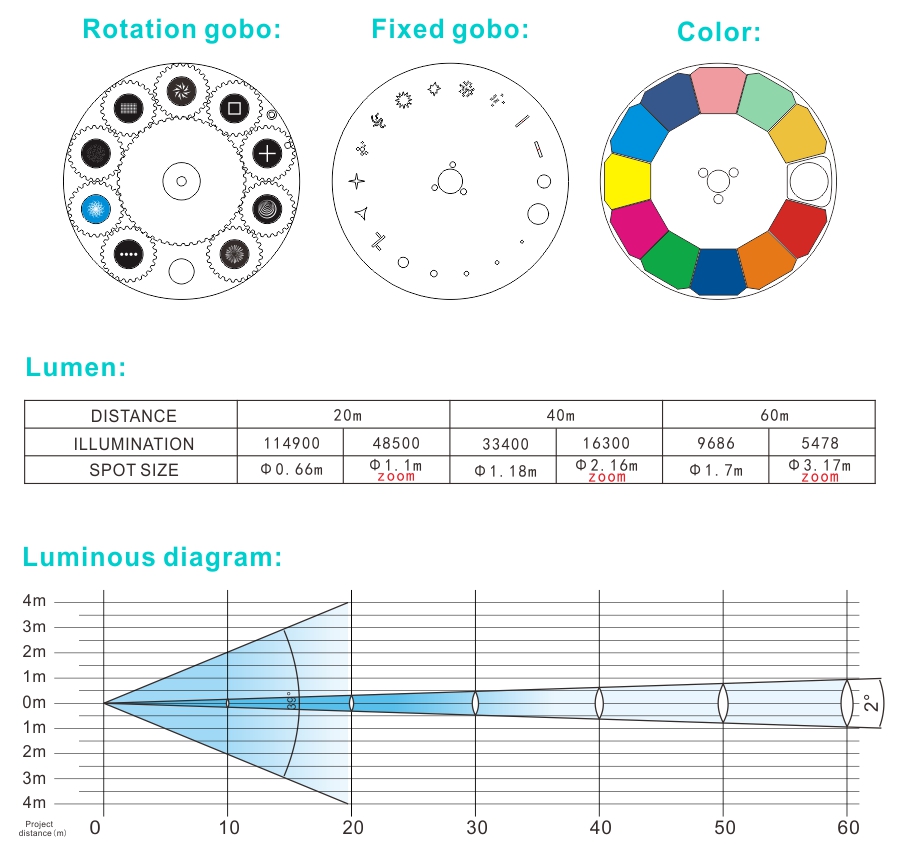

Gobo Wheels
Fixed gobo : 16 gobo + white.
Rotation gobo: 9 gobo+ white,changeable;
Gobo size diameter:14.9mm ,image diameter:10mm;
Color Wheels
11 colors+white(CTO anc CMY optional).
Prism System
Prism: 8 facet prism+ 4 l inear prism +16 facet prism,
Each 2 prism can mixed together for using,Frost function.
Display: 2.8 inch touch screen display,can reverse 180°.
USB function: Power on display board and for updating software.
Electrical Info
Power: 110-240V,50/60Hz;
Total power: 600W;
PAN & TILT
Pan : 540°, 8Bit/16Bit ;
Tilt: 270°, 8Bit/16Bit ;
Size & Weight
Product size: 440x310x680 mm;
Flycase: 930x520x910 mm;
Carton box: 540x450x650 mm;
N.W: 20 KG ;
RECOMMEND:295W BEAM MOVING HEAD LIGHT
1.Power Cables
2.safety cable
3.Omega
4.User manual
5.Hooks
6.Flycase(optional)
7.Raincover(optional)
2.safety cable
3.Omega
4.User manual
5.Hooks
6.Flycase(optional)
7.Raincover(optional)
