7*15W led moving head wash,Mini moving head wash

Product Specifications

Model	LM105
Voltage	110-240V,50/60Hz
Bulb Model	LED 19*15w
Effect Wheel	/
Color Wheel	/
Gobo	/
Power	150W
IP Level	IP 20
Size	12KG
Function	wash and zoom

Product Description

The 7*15W LED Moving Head Wash, Mini moving head wash has 14/25CH channel mode, equipped with a French lens, supporting 7.9-38° zoom and 0-100% linear dimming. It features a reversible screen, DMX512 control, 540°/270° precise movement, with a compact size and 7kg net weight. Its portability and flexible effects suit small bars, private parties, exhibition halls and small performance scenarios.

7*15W led moving head wash,Mini moving head wash

Mode NO : LM105

Channel Mode:14/25CH

Light Source
Light Source: 15W RGBW 4in1 LED;
Life time:20000Hours

Optical System

Lens: French lens, 8 degree;
Zoom angel : 7.9-38°;
Dimmer : 0-100% l inear adjustment ;
Control & screen
Display: LCD screen display, can reverse 180°;
Protocols: DMX512
PAN & TILT
Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Electrical info
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 400W
Power connector input
Data in/out: 3-pin and 5-pin XLR

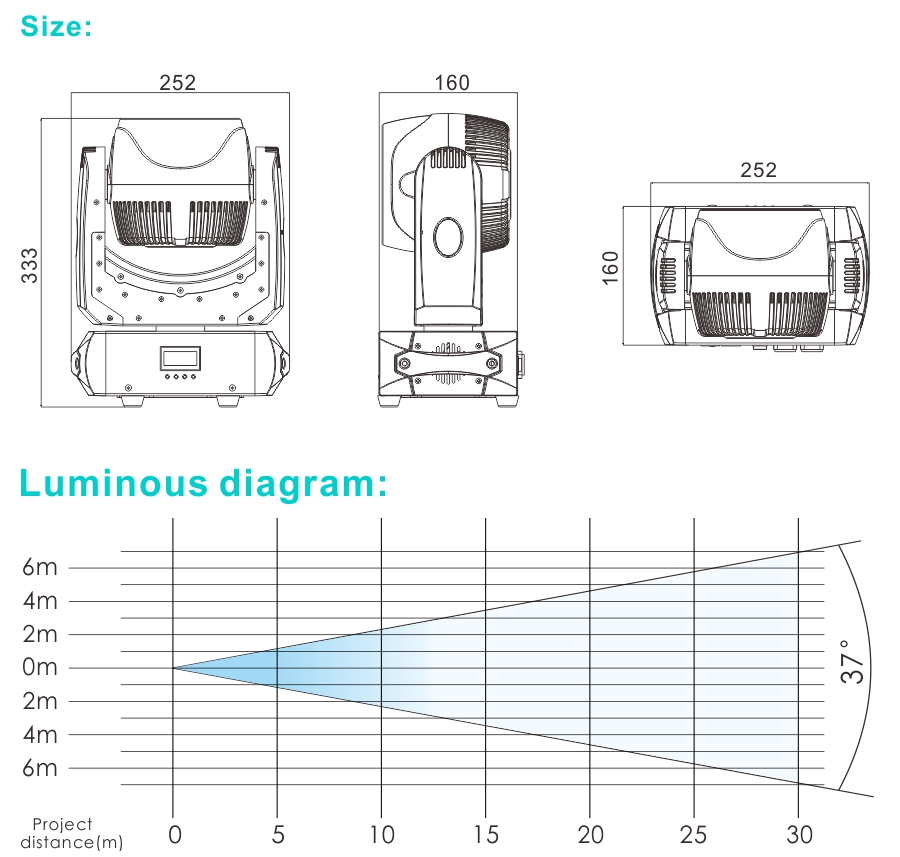

Size & Weight
Product size: 250X330X160 mm;
Carton box: 460x240x330 mm;
N.W: 7KG;
G.W: 9 KG kg(carton box).
