380W Beam Moving Head Lights

    XMLITE has already launched 420W and 350W beam moving head lights. Why do we introduce NEX430? Mainly due to fierce market competition—some countries demand beam lights with higher cost-performance. Additionally, this product can be upgraded to NEX431, adding more prism effects.
    Equipped with a 371W bulb, it’s compatible with international brand lighting libraries, supports DMX512 control, and works with global performance equipment protocols. It also comes with a cross-border after-sales technical support team.
    Applicable for: Concert lights, theater lights, church lighting, sports event lighting, outdoor event lighting, wedding venue lighting, banquet hall lighting.

Mode NO : NEX 430

VIDEO LINK HERE

Channel Mode: 16CH/20CH;

Light Source

Lamp: OSRAM 371W S +;

Light source color temperature：7700K;

Light source life：3000 hours;

Output luminous flux：13500 lm;

Color temperature：6700k

CRI：80;

10 meters illumination: 330000 lux, minimum spot 0.39m;

Rated voltage：AC110-240V~；

Voltage:：50/60Hz;

Current：4A-1.85A；

Power：445W;

Power factor：PF≥0.98；

Optical System

Beam angle：2.2°;

Display: 1.7-inch TFT display, can be reversed 180°;

Gobo Wheels

Color wheel: 14 colors + white light;

Color chip: imported Italian ODL color chip;

Color Wheels

Fixed pattern wheel: 6 patterns + 5 beams + 4 colored glass patterns;

Effect wheel: Colorful effect wheel. When the prism comes out, the effect wheel is inserted to present the colorful prism effect;

Prism System

Biprism: 1 circular 8-prism + circular 48-prism (8+16+24), with prism superposition function and prism zoom function;

Focus: supports linear focus; has fog function;

Dimming: 0-100% electronic dimming;

Strobe: supports mechanical strobe and adjustable speed strobe effects, and supports strobe macro function;

PAN & TILT

Pan：540°，8/16Bit;

Tilt：270°，8/16Bit;

IP protection level：IP20;

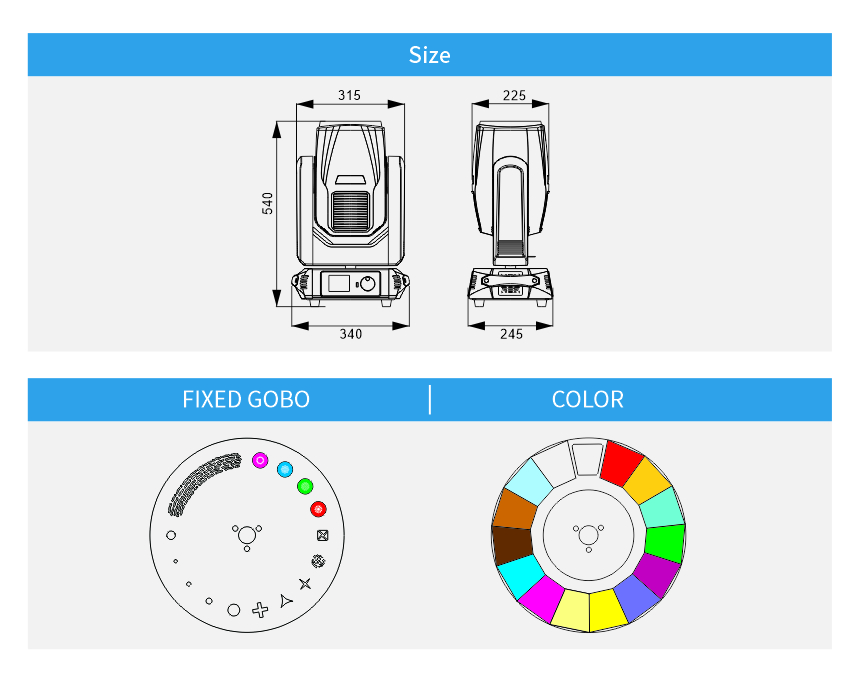

Size & Weight

Product size：340x245x540 mm;

N/W：17.5 kg;

G/W：19.5 kg;
