Product Specifications

Model	BEAM 440
Voltage	110-220V
Bulb Model	OSRAM 440W
Color Wheel	13 colors
Gobo	17 gobos + white
Power	600W
IP Level	IP20
Size	22 KG

Product Description
Accessories

440W video link,click here

440W outdoor show,click here

All xmlite light video click here

Moving head Beam 440,Moving Head Light

Model NO:BEAM 440
(20R Moving head Beam Light)
BEAM440 XMLITE Moving head Light
(20R Moving head Beam Light)
Channel Mode:16 Channel mode

Light Source
Lamp：OSRAM SIRIUS HRI 440W WD41MM

Optical System
Beam angel : 2.8°.
With self correction.
Dimmer : 0-100% linear adjustment

Gobo Wheels
1 gobo wheel, fixed gobo wheel have 17 gobos + white.
Rotation gobo ( optional ) changeable, 9 gobos+ white
Gobo size diameter:14.9mm (image diameter:10mm).

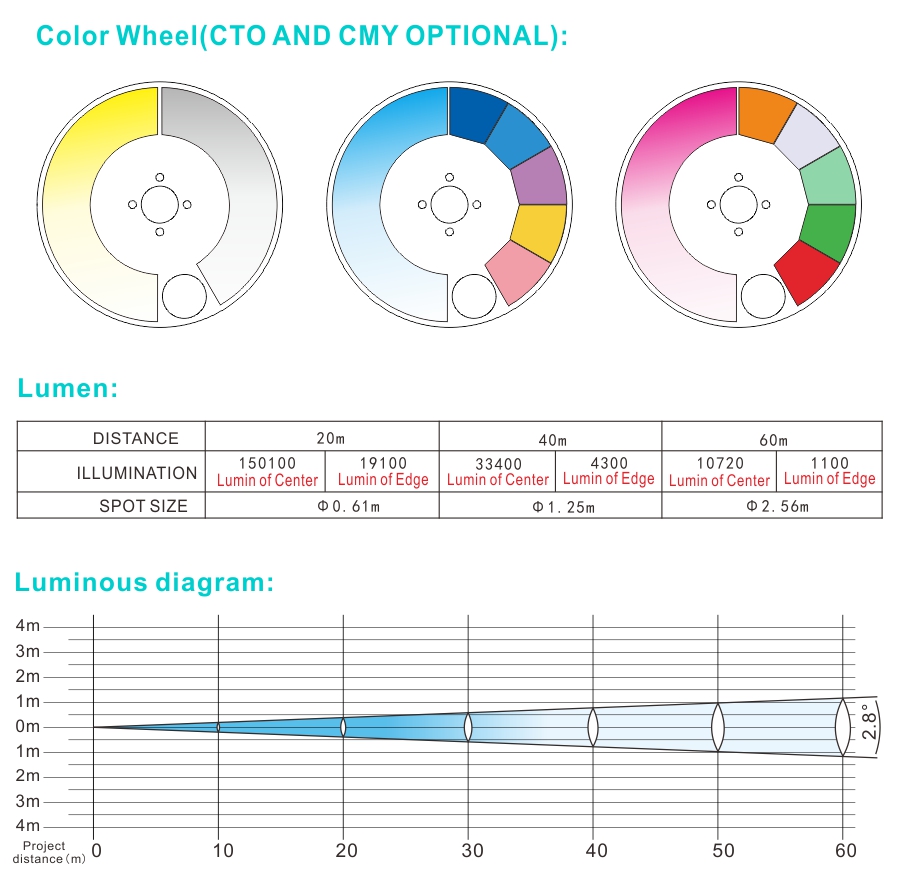

Color Wheels
One color wheel , 13 colors.

Prism System
3 prisms, one is 8 facet prism, one is 6 linear prism, and one is 16 facet prism.
Each 2 prism can mixed together.
Frost function.

Control & Screen
Display：2.8 inch touch screen display, can reverse 180° with battery.

Electrical Info
Power：100-240V，50/60Hz
Total power：600W
(Over heat protection).
Electronial ballast.

PAN & TILT
Pan 540°，8Bit/16Bit
Tilt 270°，8Bit/16Bit

Size & Weight
Product size：440*310*680mm
N.W: 22 KG
G.W：25 KG
