Product Specifications

Model	Beam350
Voltage	220V
Bulb Model	YODN350
Color Wheel	15 colors
Gobo	14 gobo + white
Power	470W
IP Level	20
Size	18.5kgs

Product Description
Accessories

The 17R Beam Moving head light features a Yodn350W lamp, switchable 4/6° beam angles, 14 gobos+white, 15-color wheel, double prisms+frost, 0-100% dimming, 540°/270° precise movement, and a 2.8-inch reversible screen. Its versatile visuals suit small-medium theaters, Livehouses, bar parties, commercial roadshows, balancing scene ambiance and visual layers.

video here

Moving head Beam 350,Moving Head Light

MODEL NO : Beam350

Channels mode : 16/19CH

Light Source
Lamp: Yodn350W;
power: 110-240V,50/60Hz;
Total power: 470W;

Optical System
Beam angel : 4 or 6°;
Dimmer : 0-100% linear adjustment ;

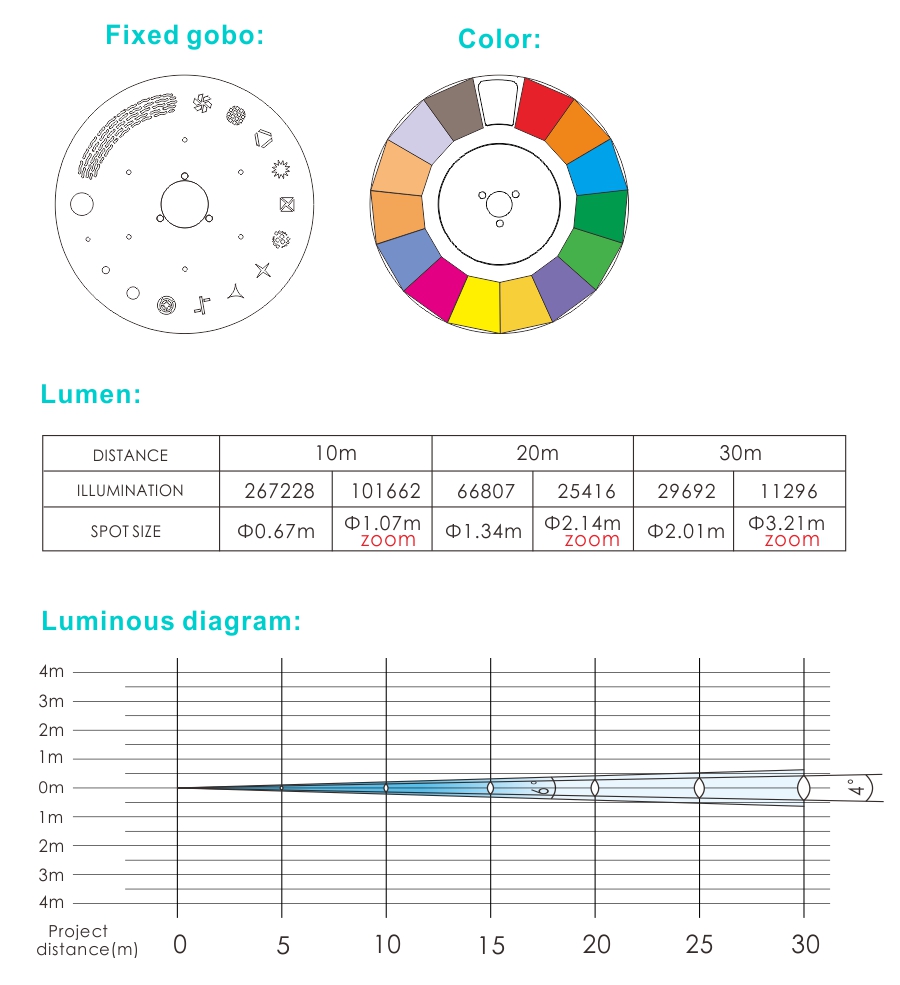

Gobo Wheels
Fixed gobo : 14 gobo + white.

Color Wheels
15 colors

Prism System
16 facet prism+ 6 linear prism ,Frost function; 32 prism+6 linear prism

Control & Screen
Display: 2.8 inch screen display,can reverse 180°;

PAN & TILT
Pan : 540°; 8Bit/16Bit ;
Tilt: 270°; 8Bit/16Bit ;

Size & Weight
Product size: 410x600x350mm;
N.W: 18.5KG ;
G.W: 73 KG(with flycase 2 in 1);

G.W: 20KG(carton).
