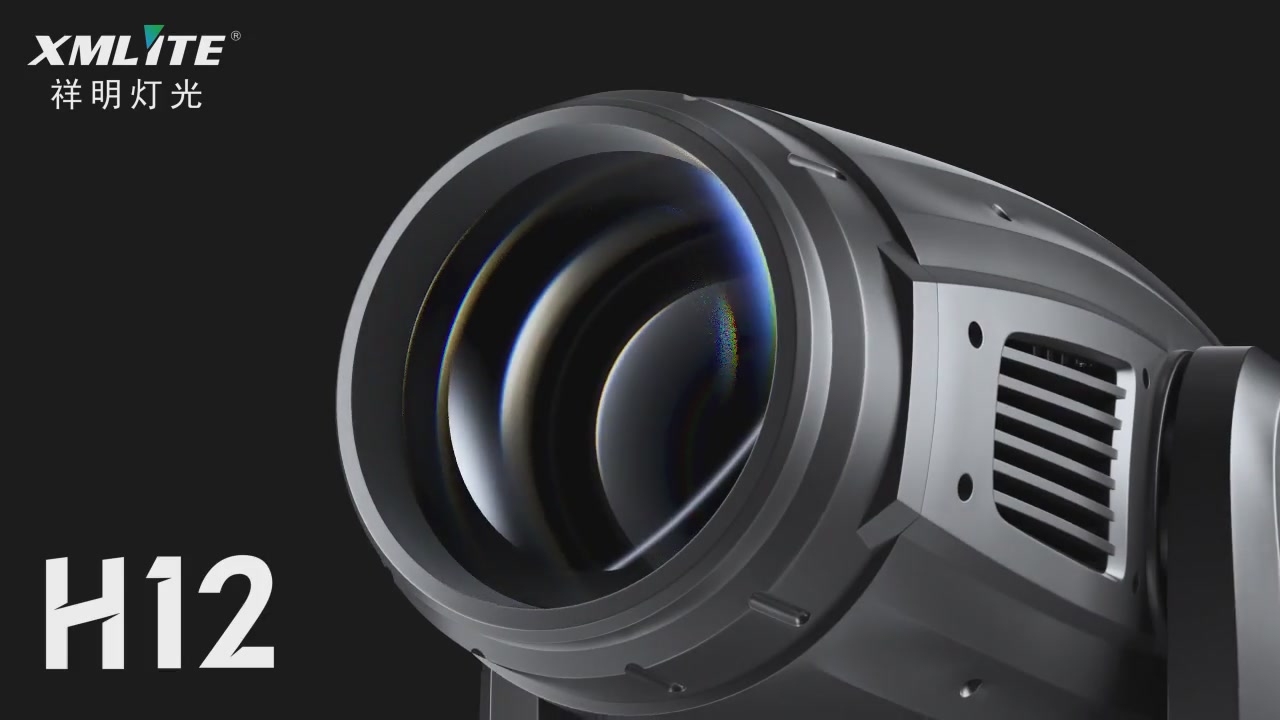

1200W LED profile Moving Head Light, LED 4 in 1 Moving head light

The H12 LED profile moving head light was launched in 2020. It uses a SUPER high efficiency white LED module light source with a light source 1200w, life up to 20,000 hours. It is a professional LED s profile moving head light; Especially it been designed as 4 in 1 function. beam Angel arrived 5 degree advanced optical system, angle range 5-52°; adopts high thermal conductivity copper pipe and fan cooling system, which is more silent; XMlite patented technology 180° flip fast graphics framing system, can be cut into different graphics, slice positioning is accurate, four sides are clear; CMY stepless color mixing, multi color wheel can fully satisfy The light director; the spot uniformity is as high as 90%, and it has a interchangeable rotating gobo plate, with a clear and sharp pattern effect;
H12 have super brightness for output  53000lm

Vide link clcik here(default is 4 blades version)

Modle:H12

Channels Mode:  43/39CH;

Light Source
Lamp: 1200W White LED Engine ;
Life time：20000 hours;
Light Source Luminous Flux：53000LM；

Optical System
Beam angel : 5～52°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo :   6 gobo + white.
Rotation gobo:  6 gobo+ white,changeable;

Color Wheels
6 fix colors+white+CMY+CTO.CT:3200-6000K

Prism System
Prism:  4 facet prism ,Frost function;

Framing System
Cut: 4 plates. After cut, the pattern canrotation 180°
Position lock system: Magnetism position lock system

Control & Screen
Display: 2.8 inch  screen display, can reverse 180°;

Connector can set DMX address with power and upgrade thesoftware.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 700W;

PAN & TILT
Pan : 540°;  8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;

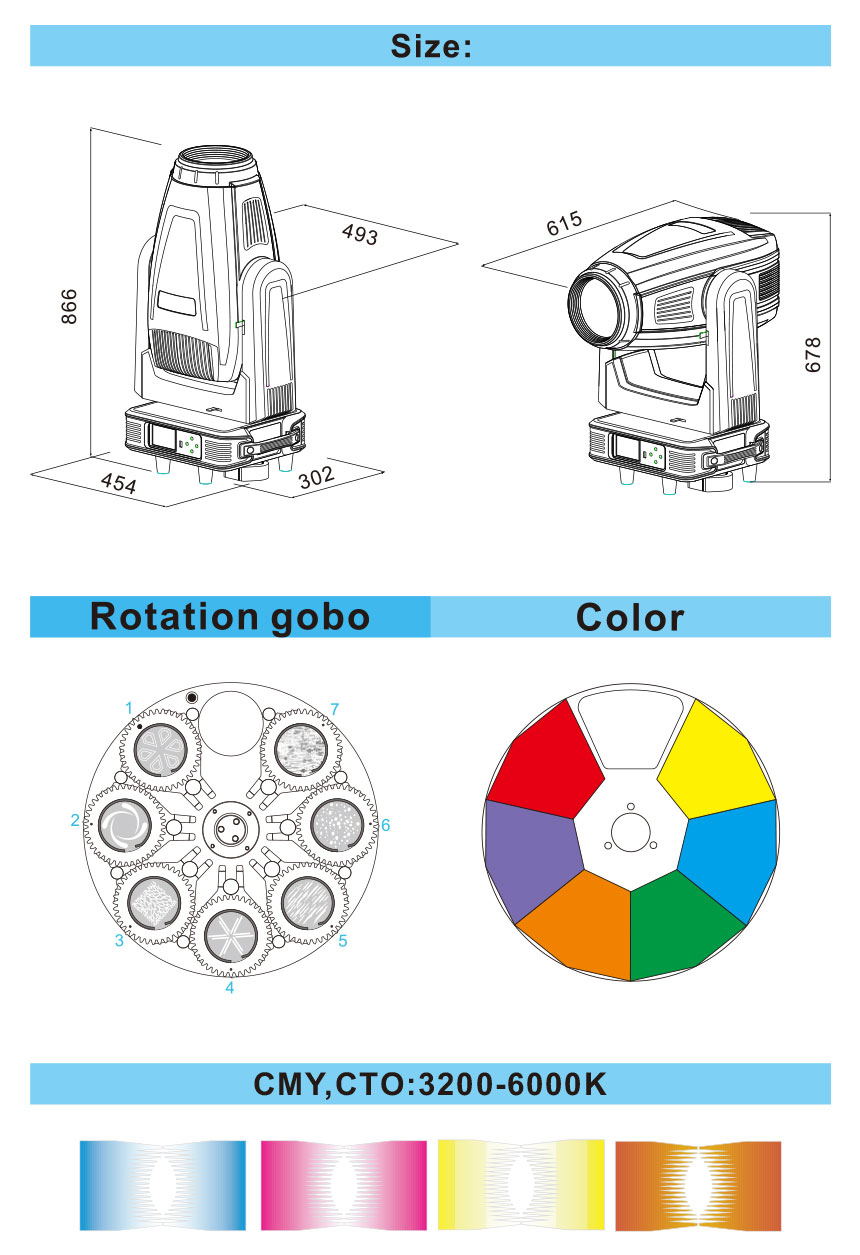

Size & Weight
Product size:  482x371x870mm;
Carton box: 860x490x510 mm;
N.W: 43KG ;
G.W: 48 KG
