Megaplus480 is a fully functional 3 in1 moving head light. It debuted at the Shanghai exhibition in October 2019 and was highly praised by customers . This hybrid moving head light uses the OSRAM SIRIUS HRI 470W L light source with high brightness and long focal length, the front group of light emitting lens is 160MM, and the new optical system makes the small angle smaller and the large angle larger.
There are more prism effects. There are two layers of prism wheels and 6 prisms, which can be superimposed to produce up to 15 different prism effects; dynamic effect wheels, which can produce more dynamic patterns; CMY  color mixing, can make the color transition smooth; easy to plug and replace Rotating the pattern plate can quickly change the pattern plate. More detailed features can be viewed in the following video.

Youtube Link:Megaplus480 video

480W Mega lite Moving Head

Mode NO : MEGAPLUS480
Channel Mode:34/39CH
Light Source
Lamp: OSRAM SIRIUS HRI 470W XL
Life time:1500Hours

Optical System
Advanced optical system, clear, sharp
Zoom range 2.5～45°

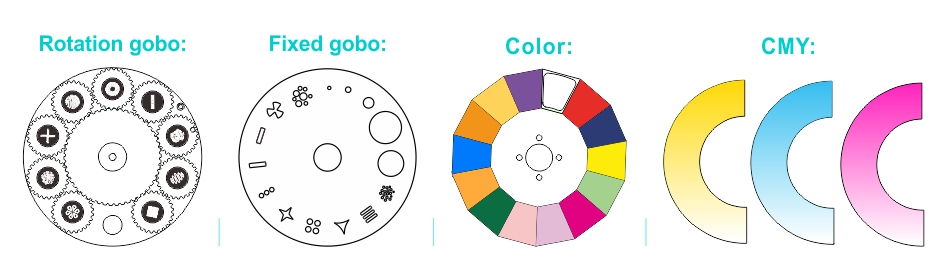

Gobo Wheels
Static gobo:   14 gobos + white.
Rotation gobo:   9 gobos+ white, changeable;
Animation gobo: Could be used by separately or combined with other gobo

Color Wheels
11 Colors+2700K +3200K+White+CMY Prism

Prism System
Rotation prism wheel 1 :8 Facet prism+ Linear 6 facet prism +cylindrical prism
Rotation prism wheel 2 :8 Facet prism+ Linear 6 facet prism +doule layer prism
Prism wheel 1 and Prism wheel 2 can overlay

Control & Screen
Display: Color display,4-touch buttons
Protocols: DMX512, RDM
USB connector can set DMX address with power and upgrade the software.

PAN & TILT
Pan: 540°; 8Bit/16Bit
Tilt: 270°; 8Bit/16Bit
Automatic Pan/Tilt position correction
Magnetic sensor position lock, more accurate than classic optical sensor

Electrical Info
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 600W
Power connector input
Data in/out: 3-pin and 5-pin XLR

Size & Weight
Product size:   410x250x690 mm;
Flycase:  930x520x910 mm;
Carton box:  800x420x500mm;
N.W: 24.5 kg;
G.W:  29 kg(carton box).
G.W:  86 kg(Flycase).
