Product Specifications

Model	Exp660
Voltage	AC110-240V,50/60Hz;
Bulb Model	660W/1000W LED
Color Wheel	7 fixcolors+white+CMY+CTO.CT:3200-6000K
Gobo	Fixed gobo: 8 gobo + white. Rotationgobo: 6 gobo+ white, changeable
IP Level	20
Size	40.5
Function	75

Product Description
Accessories

LED profile moving head light; moving head light;Framing light
*Below is LED lamp source,CRI is optional ,
before place order,pls mark it .

Click here for profile

Click here for the all xmlite video

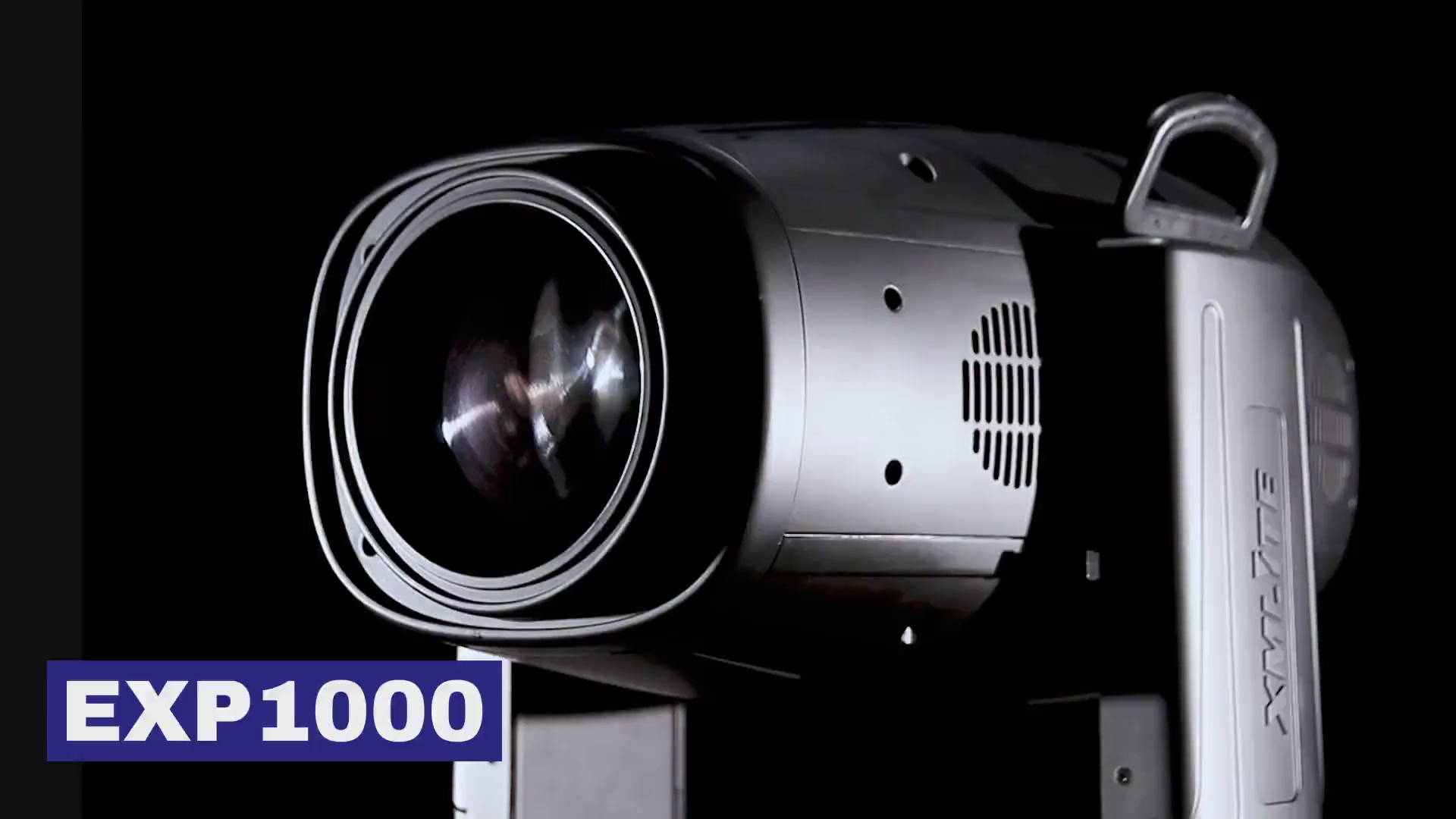

Modle:Exp1000

Channels Mode：37/41CH；

Light Source
Lamp：LED 1000W；
Life time：20000 hours； Luminous Flux：52000；
power：AC110-240V,50/60Hz；
Total power：1000W；PF≥0.95；

Opatical System
Output lens size 150mm；
Beam angel：5.5-39°,linearzoom；
Dimmer :0-100% linear adjustment
If customerneed add extra CRI option lens, there will be one color lens been substitute.

Color Wheels
7 fix color +white+CMY+CTO. CT:3200-6000K

Gobo Wheels
Fixed GOBO: 8 GOBO + white；
RotationGOBO:6 GOBO+ white, changeable;

Prism System
4 facet prism,，positiveand negative rotation; linear frost function;

Control & Screen
Display:3.5inch color LCD display, can reverse 180°；
Aperture:mechanical linear aperture, adjustable spot size.
Cut: 4plates. After cut ,the pattern can rotation 180°.
Iris:Disphragm adjustable.
Retrievingmagneto electric positioning system has higher accuracy and reliableperformance.
USBconnector can set DMX address with power and upgrade the software.
Lamp control: electronic bright and blow out, turn off and shut down for 8 seconds,then start the ECO power down mode.

PAN & TILT
Pan：540°，8/16Bit；
Tilt ：270°，8/16Bit；

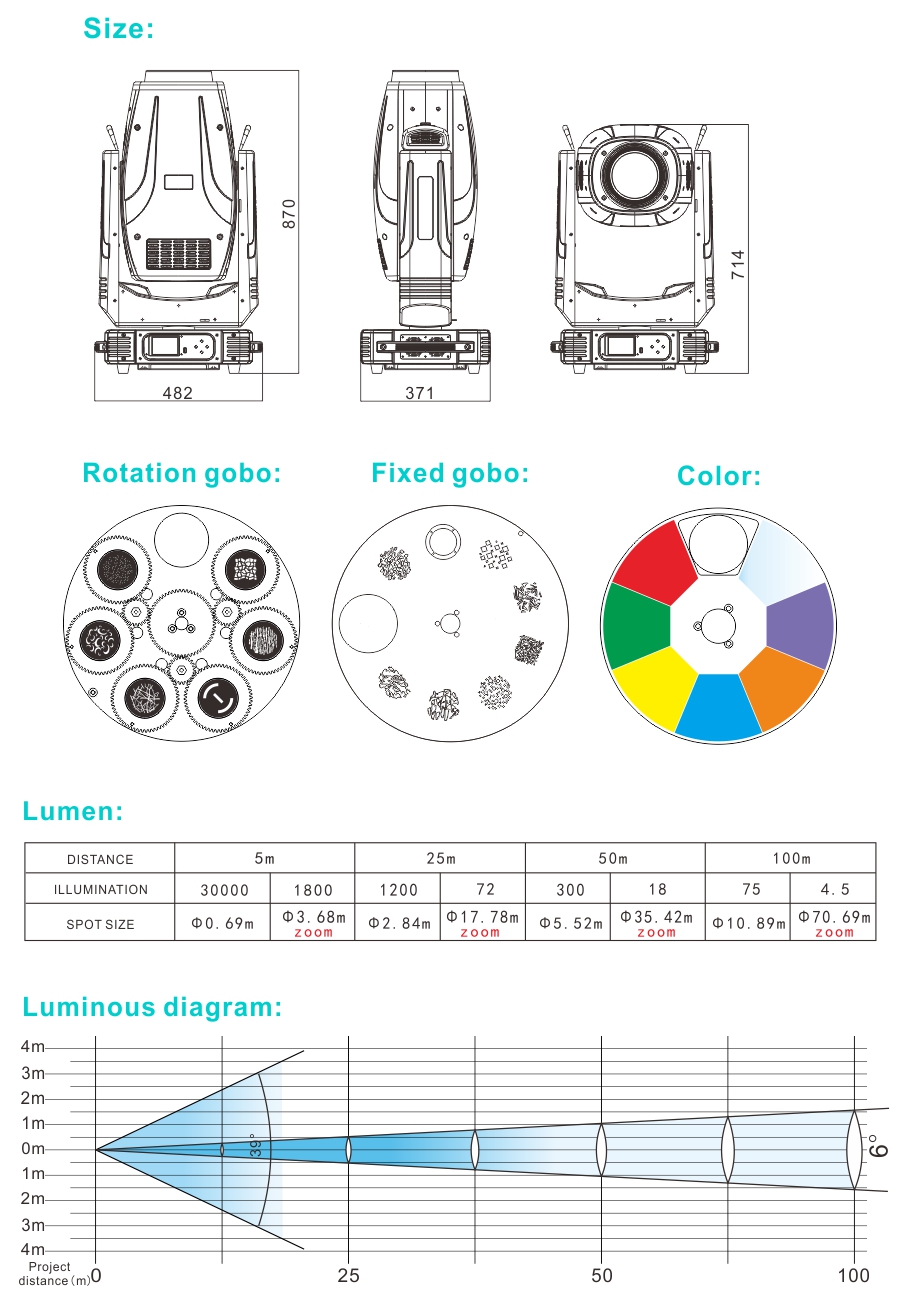

Size & Weight
Product size: 482x371.7x870 mm;
Carton box: 580x590x1000 mm;
Flycaes: 680x705x940 mm;
N.W: 42KG ;
G.W: 75 KG(with flycase 1 in 1);
