Product Specifications

Model	H5
Voltage	110-240
Bulb Model	600W LED WHITE

Product Description

H3 update to H5 is the smallest led profile in XMlite led profile moving head light product range.

Based on the customer requirement ,we launched this mode , a 500w white engine with supper smallest size shell with full functions.latest led moving head light ,600W led profile moving head light with spot , wash and framing system.smallest size and weightness only 22.5KG!

Video click here(LED SOURCE HAVE UPDATE TO 600W)

Modle:H5

Channels Mode: 44/45/50CH;

Light Source
Lamp: 500W White LED Engine ;
Life time：20000 hours;
Light Source Luminous Flux：17687lm(UPDATING)；
Illuminance at 10m:9900lux,minimum spot 1.35m

Optical System
Beam angel : 8～53°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo : 9 gobo + white.
Rotation gobo: 7 gobo+ white,changeable;

Color Wheels
6 fix colors+white+CRI+CMY+CTO.

Prism System
Prism: 3 facet prism ,Frost function;

Framing System
Cut: 4 plates.Aftercut,the pattern canrotation 180°
Position lock system: Magnetism positionlock system

Control & Screen
Display: 2.8 inch screen display, canreverse 180°;

Connector can set dmx address with power and upgrade the software.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 650W;

PAN & TILT
Pan : 540°; 8Bit/16Bit ;
Tilt : 270°; 8Bit/16Bit ;

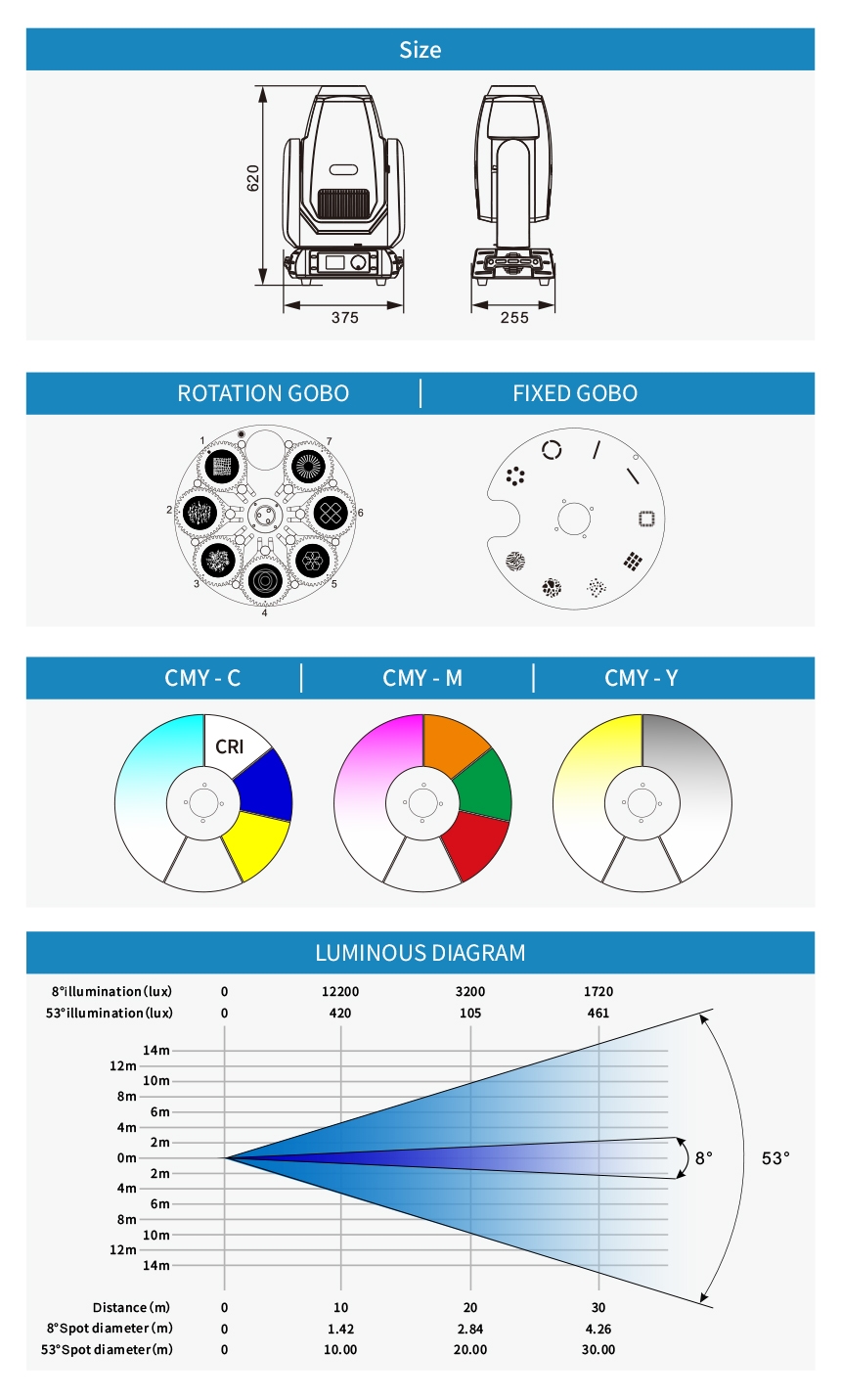

Size & Weight
Product size: 375x255x620mm;
Carton box: 690x325x440 mm;
N.W: 22.5KG ;
G.W:25KG(carton box)
